Description

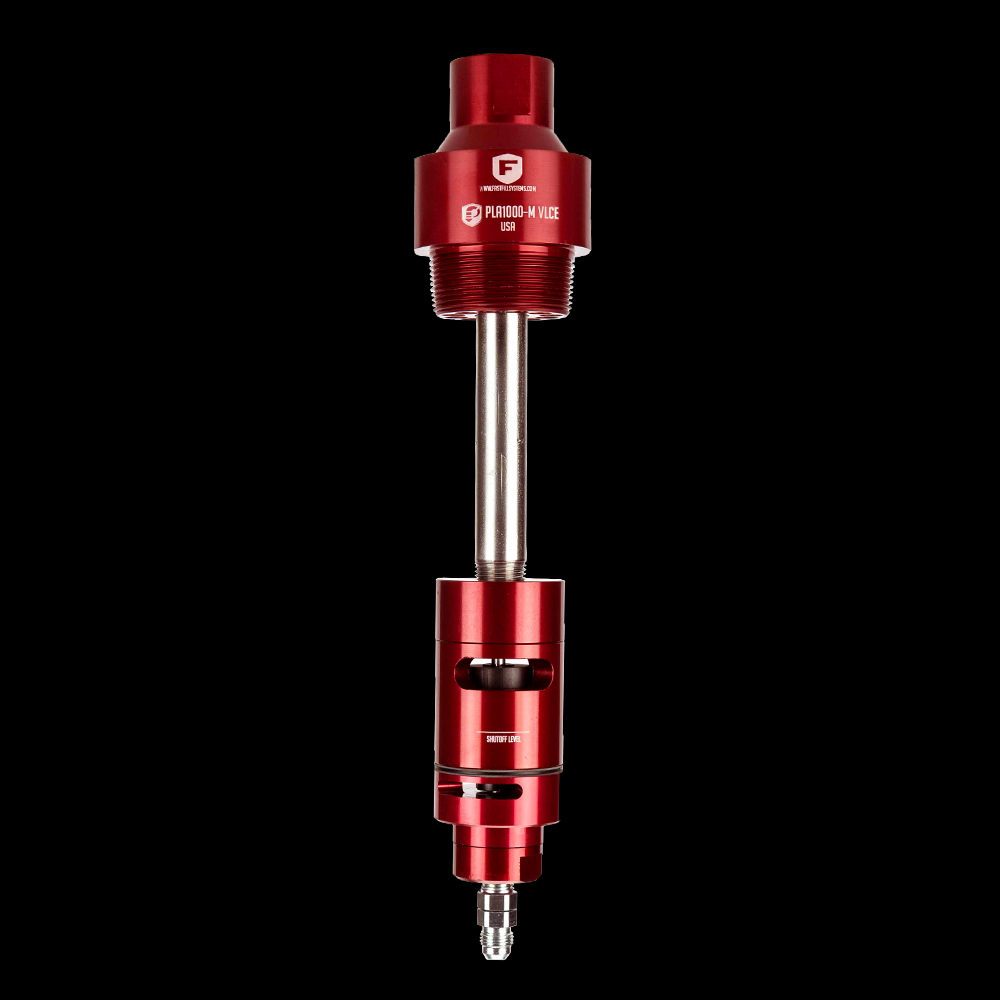

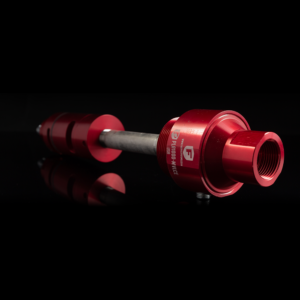

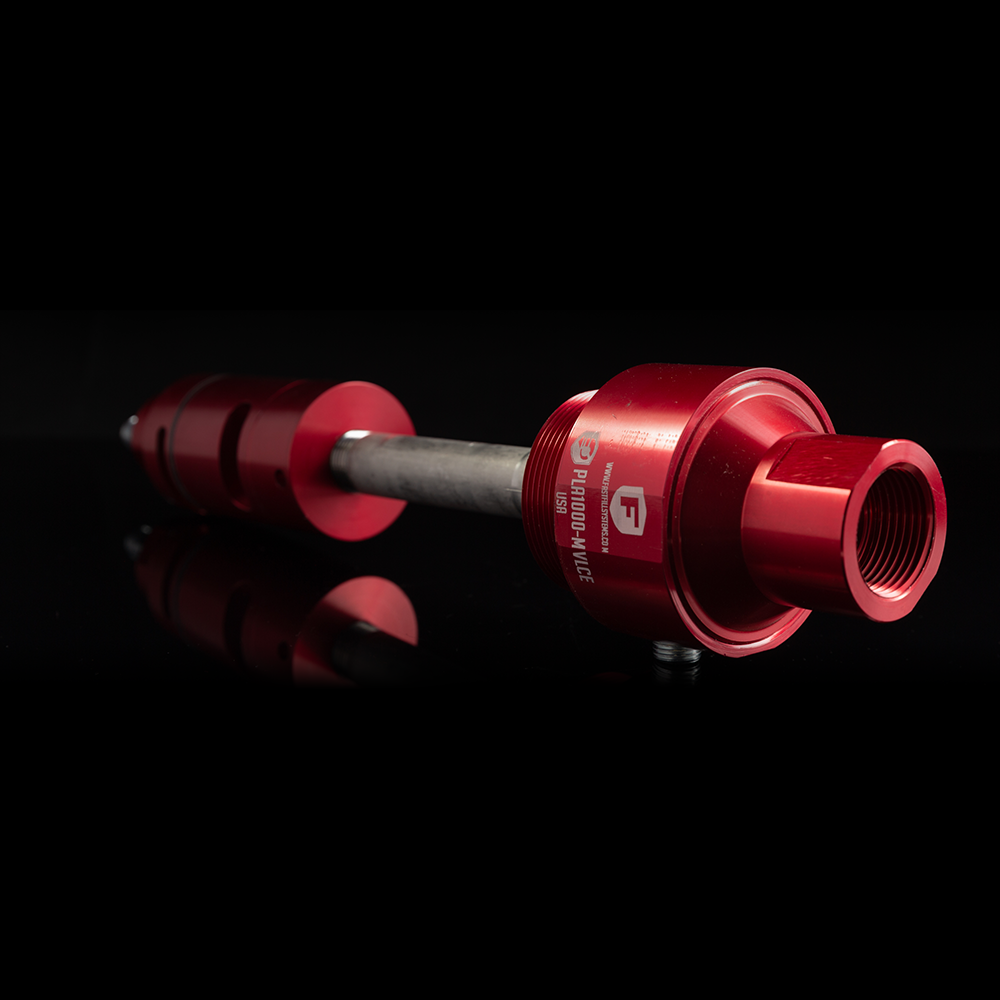

High Flow Pressureless PLA1000
When combined with the N100OPSLP nozzle, the PLA1000 pressureless system can achieve up to 1000 LPM. Pressureless systems provide operators a clean and safe way to refuel in high volume. With increased flow around the closed cell encapsulated foam float, our system maintains reliability at higher flow rates. Other features include external and internal signal line ports and integrated rollover spill protection. The VLCE is precisely engineered to function on the largest tanks with only 4″ of operating head space.
- Pressureless filling at 1000 L/min (264 G/min)
- Adjustable shut-off level
- Rollover spill protection
- 2″ NPT easily fits most tank applications
Technical Data
All technical data based upon tests performed by the Fast Fill Systems Engineering Department.
- Max Operating Pressure 8.6 BAR / 125 PSl
- Safety Eliminates potential fuel spray
- Construction Nickel plated steel anodized aluminium
- Time Saving Replace receiver without draining tank
- Economic Prevent fuel thefts
These items must be used with the N1000PSLP NOZZle to achieve the 1000LPM flow rate.
