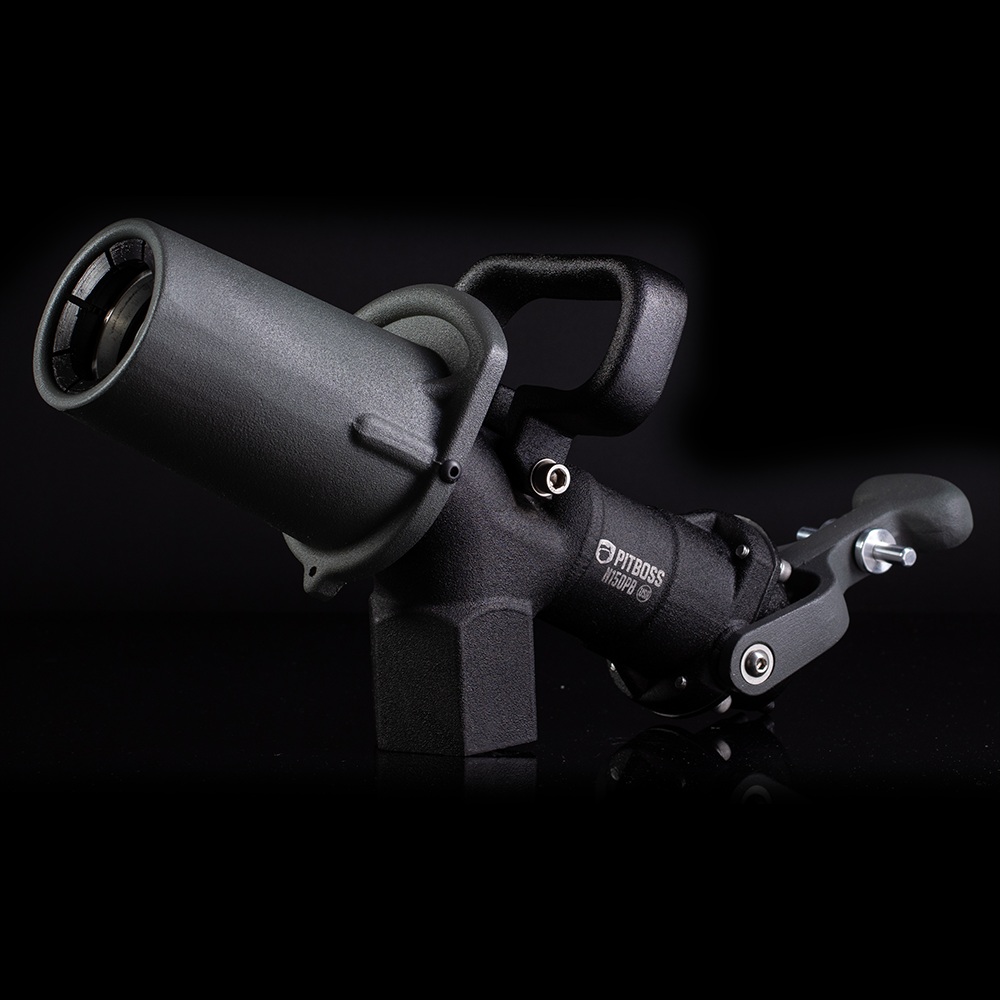

Pitboss N150PBp

Description

The PitBoss diesel fuel nozzle is perfect for users looking for a durable and forgiving diesel fueling solution. The Elastodog latching mechanism improves latching under harsh conditions and the piston-driven shutoff engagement improves longevity.

• Powder coated non-slip finish for better grip Variations
• All-metal construction and fewer internal components
• Front end plug keeps latching area clean

 [ VIEW PDF ]

Variations
Underground mining N150PBUp
Brine Resistant N150PBp-BR

Technical Data
All technical data based upon tests performed by the Fast Fill Systems Engineering Department.

• Max Operating Pressure 8.6 BAR / 125 PSI
• Max Flow Rate 567 LPM / 150 GPM
• Min Flow Rate 95 LPM / 25 GPM
• Fuel Inlet Threads 1.1/2″ NPT
• Weight 3.3 KG / 7.3 LBS
• Latching Mechanism Elastodog Clips

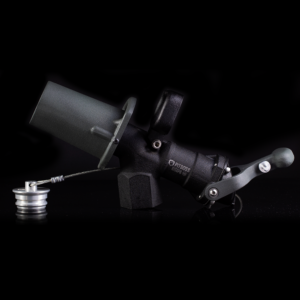

Front End Plug
P150T - PitBoss
Keeps the latching mechanism of the nozzle clean from dirt and grime for fast, clean coupling
